Dissolvable Pressure Barrier Subs - Pump Out Plugs (D-POP)

In-line dissolvable pump-out plug

In-Line Dissolving Pump-out Plug (D-POP)



The In-Line Dissolving Pump-out Plug sub is equipped with double O-rings and a proprietary coating prevent premature degradation. The sub is attached to the completion assembly and run-in hole. The equipment’s required setting pressure is applied and held for the time required. The tubing pressure is increased to shear the screws retaining the plug. Once sheared, the plug simply falls to the bottom of the well and dissolves in the well fluid, leaving a full tubing ID.

dissolvable pump-out plug

Dissolving Pump-Out Plug with Wireline Entry Guide (WD-POP)

The Dissolving Pump-out Plug is used to form a temporary solid barrier in the tubing string to perform a variety of downhole operations. Once the intended operation is complete, the solid plug is expended from the housing via applied pressure where it dissolves in the wellbore fluids conveniently eliminating potentially troublesome debris in your wellbore.

In-line dissolvable pump-out plug

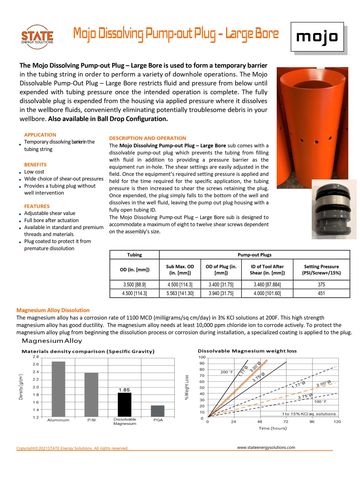

Large Bore Dissolving Pump-out Plug (LBD-POP)

The Large Bore Dissolving Pump-out Plug is used as a temporary barrier in the tubing string and is perfect for Disposal Well Completion applications. This device restricts fluid and pressure from below until expended with tubing pressure once the intended operation is complete. Once the intended operation is complete, the solid plug is expended from the housing via applied pressure where it dissolves in the wellbore fluids conveniently eliminating potentially troublesome debris in your wellbore.

dissolvable pump-out plug

Dissolving Pump-Out Plug with Half Muleshoe (HMD-POP)

The Dissolving Pump-out Plug sub with a Half Muleshoe Bottom is equipped with double O-rings and a proprietary coating prevent premature degradation. The sub is attached to the completion assembly and run-in hole. The equipment’s required setting pressure is applied and held for the time required. The tubing pressure is increased to shear the screws retaining the plug. Once sheared, the plug simply falls to the bottom of the well and dissolves in the well fluid, leaving a full tubing ID.


BULLSEYE Dissolvable Pressure Barrier Subs - Two Part Pump Out Plug

dissolvable pump-out plug

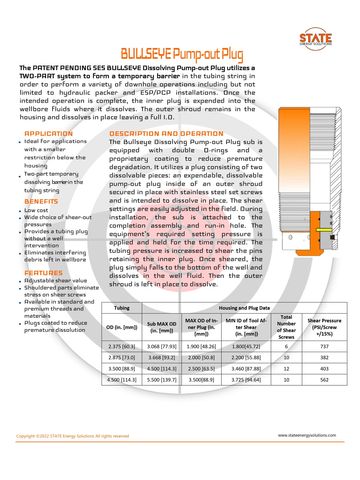

BULLSEYE Dissolvabe Pressure Barrier Sub

The PATENT PENDING SES BULLSEYE Dissolving Pump-out Plug utilizes a TWO-PART system to form a temporary barrier in the tubing string in order to perform a variety of downhole operations including but not limited to ESP and PCP installations. Once the intended operation is complete, the inner plug is expended into the wellbore fluids where it dissolves. The outer shroud remains in the housing and dissolves in place leaving a full Mill-Out I.D,


Aluminum Pump Out Plugs (A-POP )

pump-out plug

Aluminum Pump-Out Plug (A-POP)

 The Aluminum Pump-out Plug (A-POP) prevents the tubing from filling with fluid in addition to providing a pressure barrier as the equipment run in-hole.


Dissolving Balls

Dissolvable FRAC Balls

In-line dissolvable pump-out plug

Dizzolv - Solid Dissolvable Balls

The Dizzolv Solid Dissolvable Ball is designed to reduce the amount of time large diameter balls take to dissolve after completion of a wide variety of downhole operations.


Full Product Catalog
